Frequency-converted laser systems in the visible spectrum

Visible Lasers

Visible wavelength lasers operating in the 400–700 nm range, enabling high-resolution applications in spectroscopy, imaging, and precision analysis. In many cases, these systems are derived from fiber-based architectures and include frequency-converted sources such as our Green Picosecond Laser.

Portable laser for high-resolution analytical applications

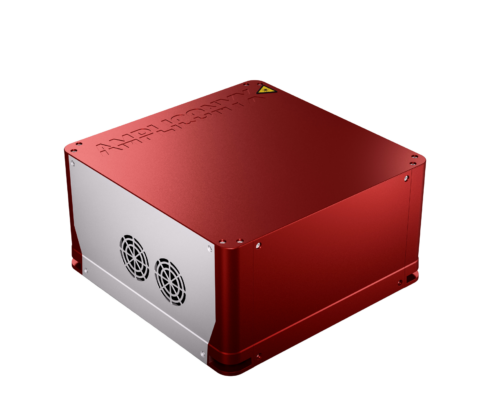

Green Picosecond Fiber Laser
AMPX-PICO-532/100/1

Enabling Precise Raman and Time-Resolved Analysis Beyond the Lab

Where compact ultrafast laser sources fail due to spectral broadening, vibration sensitivity, and insufficient stability in real-world environments, the Green Picosecond Fiber Laser overcomes these limitations with its tapered double-clad fiber architecture, delivering up to 1.5 W average power and 1.5 µJ pulse energy at 50 or 100 ps pulse duration – in a compact, field-deployable platform designed for demanding analytical applications.

  • Main Application Areas: Optimized for Raman spectroscopy, time-resolved analysis, and scientific research, the Green Picosecond Fiber Laser delivers where it matters most: patented tapered double-clad fiber technology keeps spectral bandwidth to typically 0.1 nm, while the full-fiber IR amplification scheme ensures vibration-insensitive, consistent performance beyond the lab.
  • Typical Industries: From mining and biology to medicine and industrial chemical analysis, this laser brings high-resolution analytical performance into the field – its compact form factor (324 × 324 × 166 mm), low environmental sensitivity, and OEM-ready interfaces (Ethernet, RS232, USB) make it fast to deploy in both portable devices and industrial systems.
Explore applications & industries

  • Average Output Power: 0.8-1.5 W (typ. 1 W)

  • Wavelengths:
    532 nm (central)

  • Pulse Energy:
    Up to 1.5 µJ

  • Pulse Duration:
    50 / 100 ps

View Data Sheet

PARAMETER

VALUE

Beam Quality (M²):

Typically 1 (max 1.2)

Repetition Rate:

Typically 1 MHz

Spectral Bandwidth:

Typically 0.1 nm (@ 3 dB FWHM)

State of Polarization:

Linear

Output Fiber:

MM 105/125, NA = 0.15

Dimensions:

324 × 324 × 166 mm

Specifications are subject to change due to ongoing product improvements.

Looking for a Visible Laser Solution?

Do you need a reliable laser source for spectroscopy, imaging, or precision analysis? Are you looking for high spectral performance and stable operation in the visible wavelength range? Our experts are ready to support you in finding the right solution for your application.
