High-Power Fiber Amplification at 2 Micrometers

Thulium-Doped Lasers

Thulium-doped fiber lasers operate in the 2 µm wavelength range and are widely used for high-peak-power short-pulse amplification where efficient energy scaling and spectral purity are required. As a result, they form the basis for demanding laser systems in which stable performance and clean spectral output are essential. In these systems, the Tm-TGM gain module provides the core amplification stage within these systems, enabling reliable operation with integrated spectral cleaning.

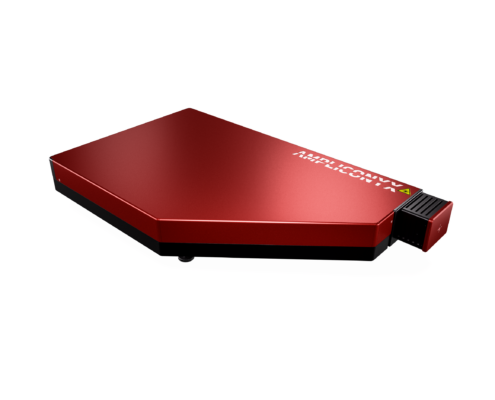

Ampliconyx_Gain-Module-AMPX-Tm-TGM

Thulium Fiber Amplification at High Power

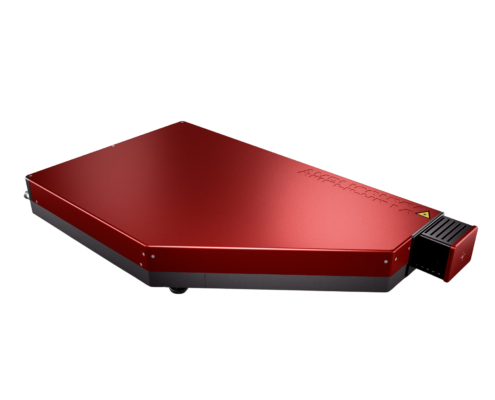

Gain Module AMPX-Tm-TGM
(Tm, 30W)

Powerful 2 µm Amplification Without Compromise

AMPX-Tm-TGM is a water-cooled thulium gain module with integrated forward pumping and ASE filtering. It is designed to overcome nonlinear effects and amplified spontaneous emission limitations in high peak power operation. As a result, it enables clean and stable short-pulse amplification in the 2 µm range.

  • Main Application Areas: The AMPX-Tm-TGM serves demanding applications in science, industry, and aerospace wherever short-pulse amplification in the 2 µm range is required. In particular, its patented tapered double-clad fiber delivers peak powers up to 5 kW at near-diffraction-limited beam quality (M² < 1.4).
  • Typical Industries: Designed for advanced photonics research and industrial ultrafast laser development, the AMPX-Tm-TGM features a turn-key architecture with built-in pump diodes, an integrated ASE filter, and active thermal monitoring. As a result, it simplifies the integration of high-power 2 µm systems.
Explore applications & industries

  • Average Output Power:
    Up to 40 W

  • Peak Power:
    Up to 5 kW

  • Beam Quality (M²):
    Typically 1.2 (M² < 1.4)

  • Wavelengths: 1820-2040 nm; 1950 nm central

View Data Sheet

PARAMETER

VALUE

Input Signal Power:

10 mW to 300 mW (typically 50 mW)

Pump Wavelength:

793 nm

Polarization:

Polarization-maintaining (PM)

Dimensions:

811 × 427 × 115 mm

Slope Efficiency:

~ 51.3%

Specifications are subject to change due to ongoing product improvements.

Find Your 2 µm Laser Solution

Ampliconyx thulium-doped fiber lasers enable high-peak-power short-pulse amplification with excellent spectral purity and stable performance in the two-micrometer wavelength range. Based on your application requirements, our experts are ready to support you in finding the optimal laser solution.
