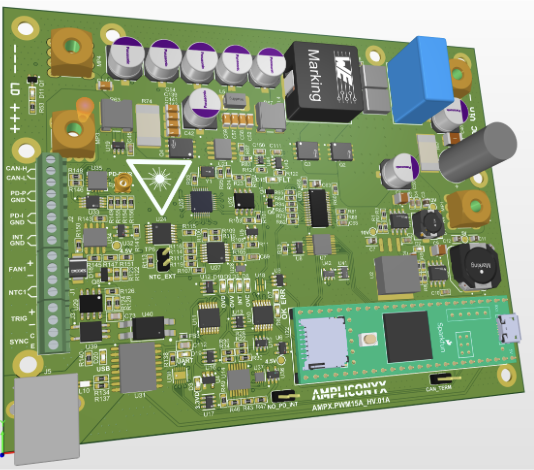

The AMPX.PWM15A_HV is a high-power laser diode driver optimized for both CW and low-frequency PWM modes. The driver has an integrated low-pass filter. The circuit of the driver is based on FETs for high efficiency. AMPX.PWM15A_HV is fully digitally controlled via CAN 2.0A or isolated USB interfaces. The driver offers various safety features: interlock signal, allow signal, diode and driver temperature monitoring. Ideal for both air- and water-cooled systems.

• Dimensions: 130mm x 100mm x 24mm
• Output Current Range: 0.3-15 Аmps (1mA step)
• Output Voltage: up to 36 Volts
• Input power supply: 24-48V 500W
• PWM frequency: up to 1 kHz (for higher frequencies see AMPX.MOD15AL device)
• Integrated RLC low-pass filter
• High efficiency up to 95%
• Communication Interfaces: CAN 2.0A, Isolated USB 2.0
• Interlock input with latching (internally pulled-up to +3.3V by 4.7 kOhm)
• NTC thermistor input (laser diode temperature monitor)
• Internal temperature monitor (to control driver overheating)
• Photodiode input as the enabling signal (for example, to control the seed source emission and preventing pumping without seeding)
• Photodiode input for optical power output measurement
• External fan (12V up to 10W) connection available
• Galvanically isolated trigger input and synchronization output
• Overtemperature, overcurrent, overvoltage, overpower protection

Optional features:

• UART, LAN interfaces
• Combining up to 127 devices in one stack via CAN interface
• External controller with LCD
