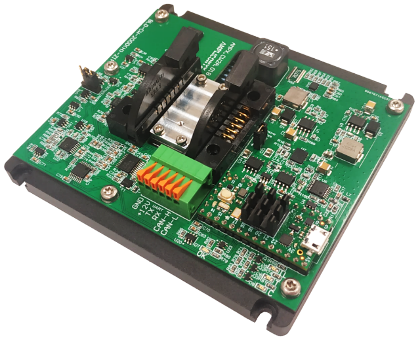

AMPX.CW2A (PLD-CW-2000-ZIF) constant current laser diode driver for 10/14-pin butterfly modules with integrated TEC control and ZIF socket
Specifications table for AMPX.CW2A driver including input/output, temperature, connection, and mechanical parameters
Specifications for AMPX.CW2A driver, including input/output ranges, TEC control, and physical dimensions
Mechanical drawing of the AMPX.CW2A board with labeled dimensions and component placement
Mechanical layout and connector spacing for AMPX.CW2A (105 x 95.5 x 30 mm)
Laser soft start
Laser soft start
Graph showing laser diode voltage drop versus forward current under CW drive
Laser soft disabling
Graph showing optical power output of the laser diode as a function of current
Laser Shutdown
Graph illustrating TEC-enabled temperature stabilization of the laser diode over time
Temperature stabilization (only for reference, default PID configuration)

AMPX.CW2A (PLD-CW-2000-ZIF)

Download data sheet
