Gain modules
- Peak power over 1 MW
- Strictly single mode operation with M2<1,3
- High gain (30-50 dB)
- High pump absorption (20-30 dB@976 nm)
- Required signal power as low as tens of mWs
- Low level of nonlinear effects
TGModule A
TGModule C
TGModule D

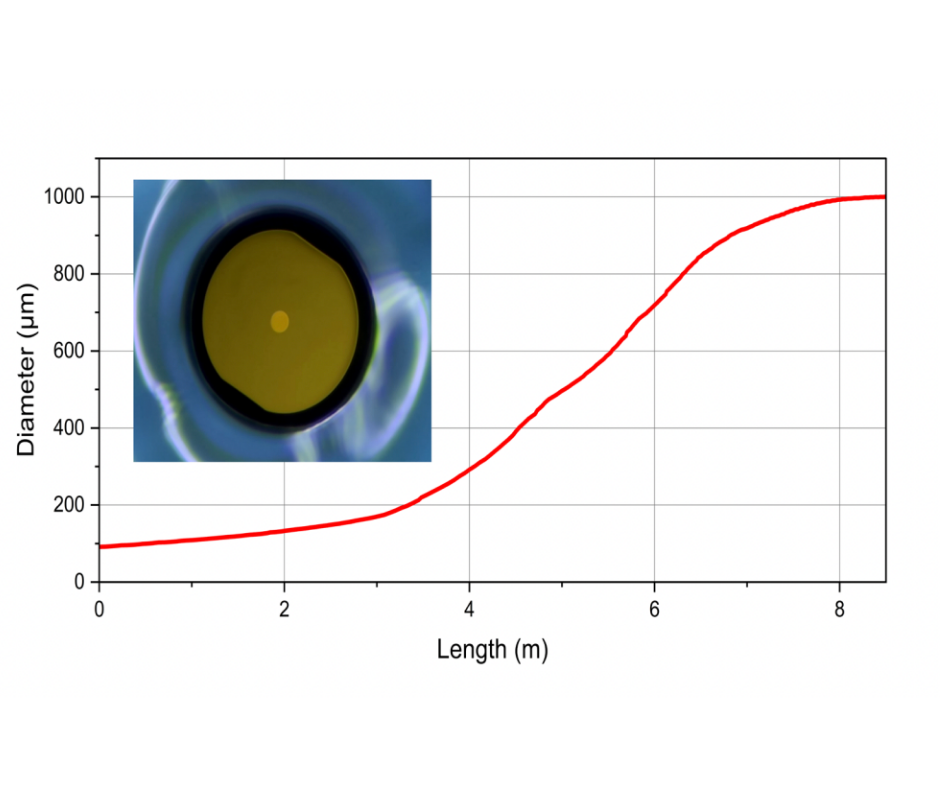

- High-power gain fiber based on patented tapered double clad fiber (T-DCF)
- Single mode output, M2 < 1.3
- Large mode area, low level of nonlinear effects

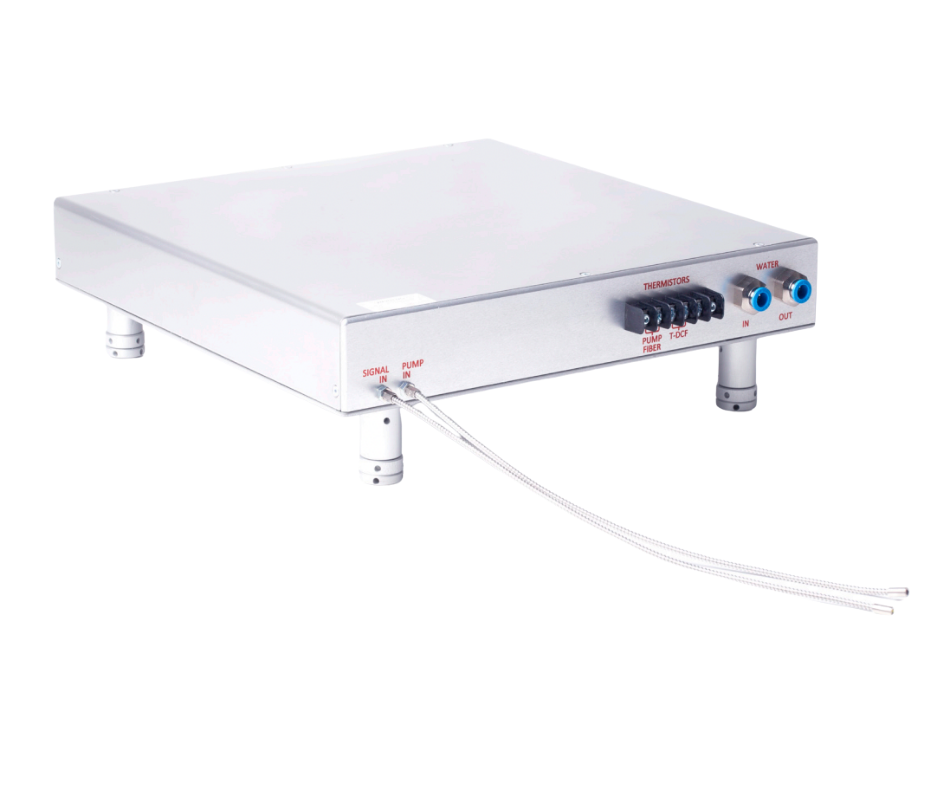

AMPX-TGMC is an amplifying module containing all the needed optical components packaged inside an aluminum housing. This module is ideal for customers who want to have fully assembled, ready-to-splice gain unit, but prefer to use their own pump diodes or integrate the module inside a larger system

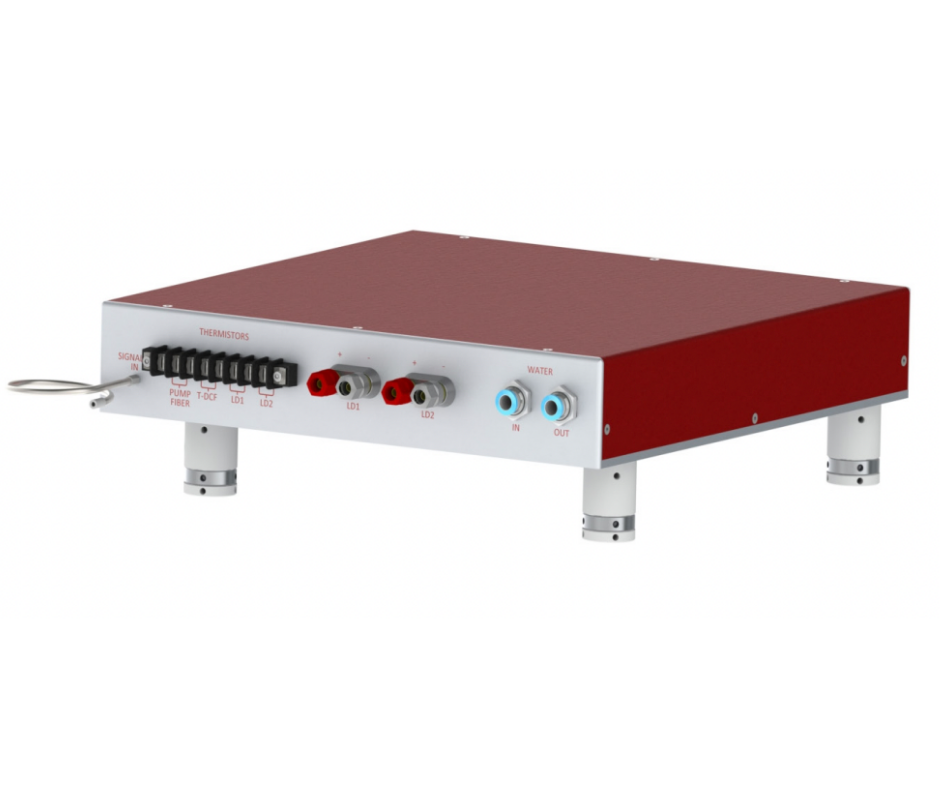

The AMPX – TGMD is an all-in-one ready-to-use water cooled amplifying module. The module includes Ampliconyx patent protected, polarization maintaining ytterbium doped tapered double clad fiber
